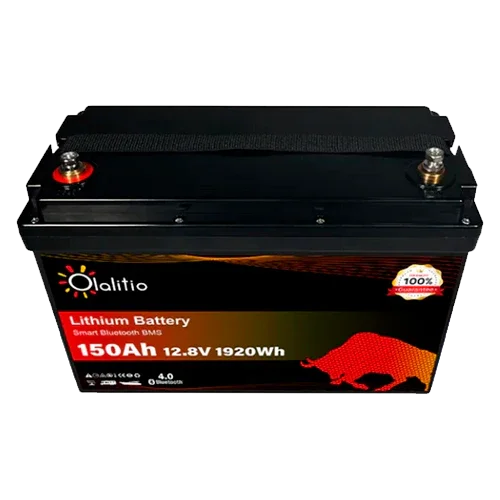

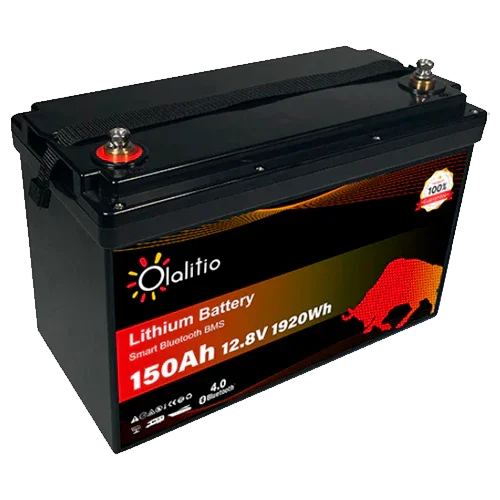

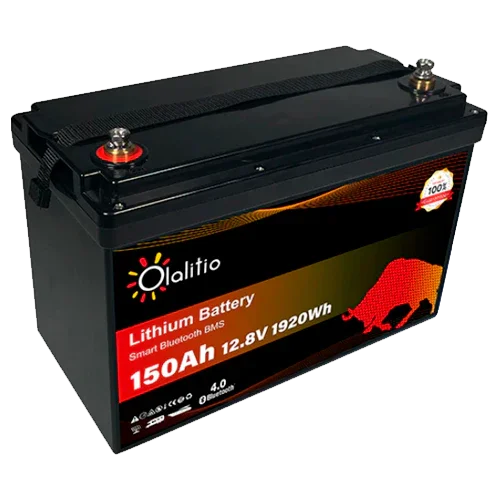

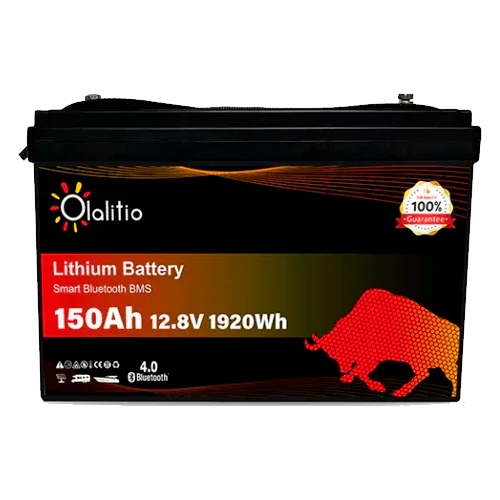

Lithium Battery 12V 150Ah Olalitio OLA-12-150-P Bluetooth
Modelo: OLA-12-150-P Bluetooth- Sku: OLALBAT006
- Vendor: Olalitio
Specifications
Product Description
The 12V 150Ah Olalitio OLA-12-150-P Bluetooth Lithium Battery is a professional lithium battery for 12 V systems that combines high capacity (1,920 Wh) with high output power and excellent environmental resistance IP65. It features an intelligent BMS and Bluetooth 4.0, allowing you to view voltage, current, state of charge, and events from your mobile device, increasing safety and efficiency of use in campers, caravans, boats, and small photovoltaic installations.
Main Features
- Capacity / Energy: 150 Ah and 1,920 Wh at 12.8 V nominal.
- Output power: 200 A continuous discharge and 450 A peak (200–500 ms) for starting surges.
- Longevity: >4,500 cycles at 90% DoD, very competitive cost per kWh compared to lead-acid batteries.
- Fast charging: CCCV/IU profile at 14.6 V; 45 A recommended (max. 75 A).
- Environmental protection: ABS enclosure with IP65 rating against dust and water jets.
- Connectivity: integrated Bluetooth 4.0 module for real-time monitoring.
Advantages or Benefits
- More autonomy with less weight: replaces much heavier and bulkier lead-acid banks, freeing up useful space.
- Active BMS safety: protections against overcharge, overdischarge, overtemperature, and short circuit.

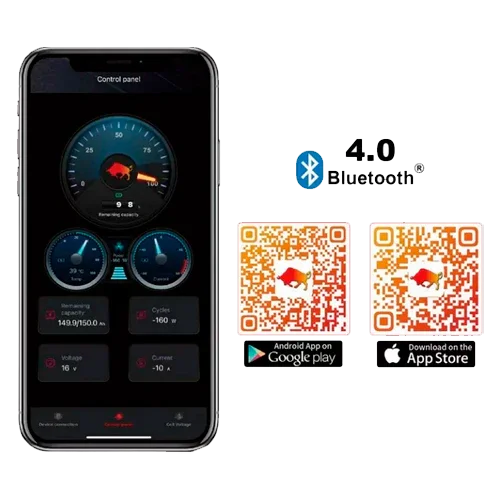

- Intelligent management: with the Bluetooth app you can check SOC, voltage, and current to avoid deep discharges and plan recharges.
- Stable performance: maintains voltage on demand and supports demanding continuous loads with brief peaks.
- Scalable and flexible: supports up to 4 in series and 4 in parallel (4S4P) to increase system voltage or capacity.
Purpose or Applications
Perfect for camper and caravan (fridge, pumps, lights, 12 V outlets, and 230 V inverters), marine (onboard services and electronics), and 12 V photovoltaic in shelters, cabins, buoys, or telecommunications. Its IP65 rating and wide thermal range allow operation in demanding environments, with vibrations, dust, or splashes.
Technical Specifications
| Model | OLA-12-150-P |
| Chemistry | Li-ion with integrated BMS |
| Capacity / Energy | 150 Ah / 1,920 Wh |
| Nominal voltage | 12.8 V |
| Operating range | 10–14.6 V |
| Life cycles | >4,500 @ 90% DoD |
| Charging profile | CCCV / IU at 14.6 V |
| Charging current | 45 A recommended (max. 75 A) |
| Continuous discharge | 200 A |
| Discharge peak | 450 A (200–500 ms) |
| Bluetooth | Integrated (4.0) |
| Configurations | Up to 4 in series and 4 in parallel (4S4P) |
| Protection | IP65 |
| Enclosure | ABS |
| Terminals | M8 (torque 9–11 N·m) |
| Dimensions (L × W × H) | 330 × 172 × 215 mm |
| Weight | 15.8 kg |
| Discharge temperature | −20 °C to 75 °C |
| Charging temperature | 0 °C to 50 °C |
| Storage temperature | −5 °C to 35 °C |
| Warranty | 5 years |
Compatibilities
Compatible with 12 V MPPT/PWM controllers, 230 V chargers with lithium profile (14.6 V), and 12 V inverters. For expansions, always use identical batteries (same brand/model and state of charge), balance them before connecting, and protect each branch with appropriate fuses and disconnectors. In series, respect the limit of up to 4S and verify the permissible voltages of all connected equipment.
The 12V 150Ah Olalitio OLA-12-150-P Bluetooth Lithium Battery offers a powerful, safe, and controllable solution for 12 V mobile and solar projects, with great autonomy, IP65, and intelligent monitoring for demanding daily use.
